Fume Arms

Fume Extraction At The Source

A fume extraction arm is a flexible, adjustable arm with a capture hood and connection to an air filtration or ventilation system, designed to capture harmful airborne contaminants like welding fumes, dust, and smoke at their source before they spread into the work environment. These arms are highly effective for improving air quality and worker safety in industries like welding, grinding, and chemical processing, as they provide localized protection right at the point of origin of the contaminants.

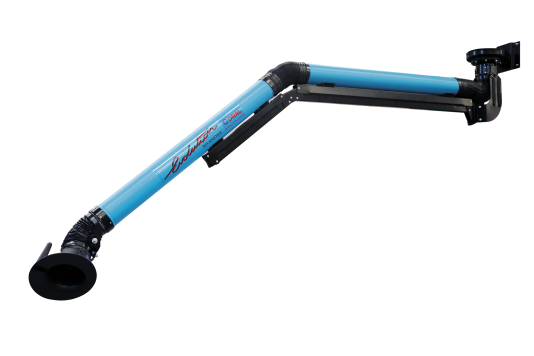

EVOLUTION NO-SMOKE – Fume Extraction Arm
Applications

Welding | Grinding | Deburring | Polishing | Sanding | Thermal Cutting | Dry Dust | Hazardous Dust | Sandblasting | Powder Coating

Efficiently free your workplace from hazardous substances

The Coral EVOLUTION NO-SMOKE self-supporting suction arm represents the best possible solution for the removal of welding smoke, gas, vapors, aerosol, oil fumes, dust, etc. directly at the source.

Coral has specifically designed the EVOLUTION NO-SMOKE extraction arm to be in full compliance with all standards regarding safety in the workplace for the removal of hazardous fumes and polluting substances from the working environment.

  • Patented external articulated joints, for lower pressure losses
  • 30% greater suction efficiency, thanks to its new Winghood hood
  • Quick and easy movements, with up to 360° rotation
  • The toughest on the market, designed for heavy-duty applications
  • 30% energy saving for the same air flow

Working principle:

Extract fumes and dust directly at the source

The polluted air is extracted at the source via the EVOLUTION NO-SMOKE fully articulated hood and passes through the sturdy sheet metal piping (available in zinc-plated, scratch-proof enameled and aluminum) to a high efficiency extraction system or the centralized piping in the plant.

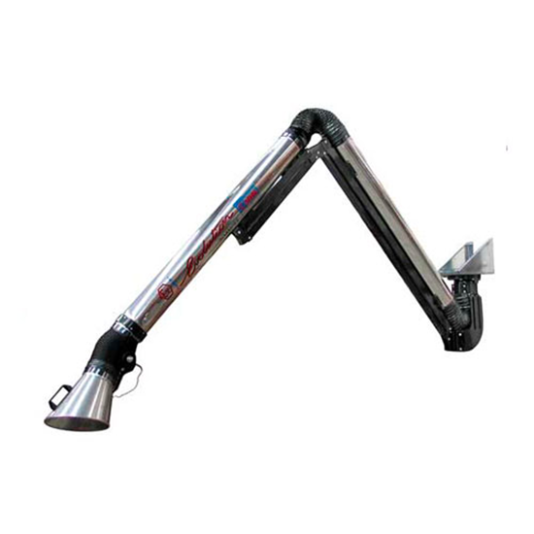

EVOLUTION NO-SMOKE ATEX – Fume Extraction Arm

Coral’s robust and easy-to-use ATEX fume arms are designed to extract hazardous pollutants at the source and move them towards specific filtering systems in potentially explosive atmospheres.

The construction of EVOLUTION NO-SMOKE ATEX uses specific materials to guarantee a proper ground connection and dissipate the static electric energy generated by the air flow in the pipes.

You can count on Cardinal Air Design as your fume extraction specialist, and source, for Coral fume extraction arms.

Products

  • EVOLUTION NO-SMOKE Fume Extraction Arm

    • Features

      • Patented external articulated joints, for lower pressure losses
      • 30% greater suction efficiency, thanks to its new Winghood hood
      • Quick and easy movements, with up to 360° rotation
      • The toughest on the market, designed for heavy-duty applications
      • 30% energy saving for the same air flow
      • Flexible PVC pipe NO SMOKE FLEX
      • Easy assembly and maintenance with simple movements
      • Brand new ergonomic polypropylene flanged hood “WINGHOOD” includes an adjustable damper to control air flow

      Applications

      • Welding
      • Grinding
      • Deburring
      • Polishing
      • Sanding
      • Thermal cutting
      • Dry dust
      • Hazardous dust
      • Sandblasting
      • Powder Coating

      Options

      • Customizable lengths and diameters to meet your requirements
      • 10 and 14 feet (3 and 4 mt) length – Ø 6.3” (160 mm) diameter wall mounted units
      • 6.5 and 10 feet (2 and 3 mt) length – Ø 6.3” (160 mm) diameter cart mounted version
  • EVOLUTION NO-SMOKE ATEX Fume Extraction Arm

    • Features

      • EVOLUTION NO-SMOKE ATEX fume extraction arm does everything the Evolution No-Smoke fume arm does with added protection
      • Constructed out of AISI 316 Stainless Steel for hazardous airstreams
      • Rigid Construction
      • Built in damper, with hand lever for the operator to adjust mid-suction
      • Stainless steel suction hood
      • Antistatic flexible hose
